From E57 to BIM – Accurate Floor Plans from 3D Scans
With a Matterport scan exported as an E57 point cloud, you get highly accurate spatial data – ideal for generating detailed 2D floor plans, as-built documentation, or even full BIM models.
How It Works
-
E57 point cloud as precision foundation
The E57 format contains millions of spatial coordinates, offering exact dimensions of walls, fixtures, and architectural features – ideal for CAD or BIM environments. -
Seamless conversion to CAD & BIM

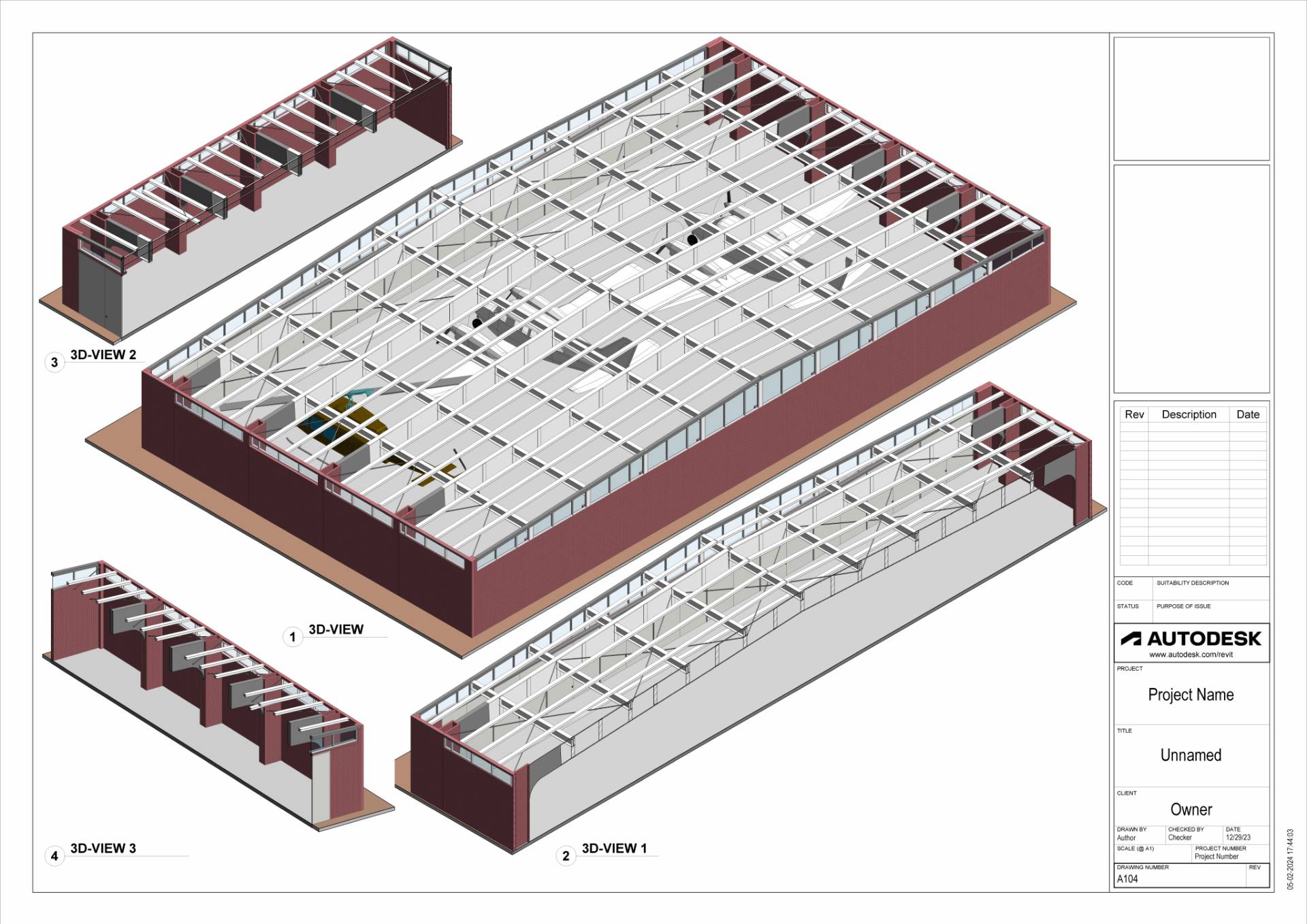

The point cloud is processed in tools like Autodesk ReCap, Revit, or ArchiCAD to create clean 2D plans or LOD-ready 3D models – perfect for BIM Level 2 or higher. -
SIA- or DIN-compliant floor plans
Based on your region, we deliver floor plans and elevation data in accordance with standard architectural norms – suitable for documentation, refurbishment, or digital building capture. -
Integration with building systems
Once converted into a BIM model, the data can be enriched with HVAC, structural, and MEP layers – forming a true digital twin for long-term asset management.
New: AI-Based Furniture Removal – Clean Data for Clean Planning

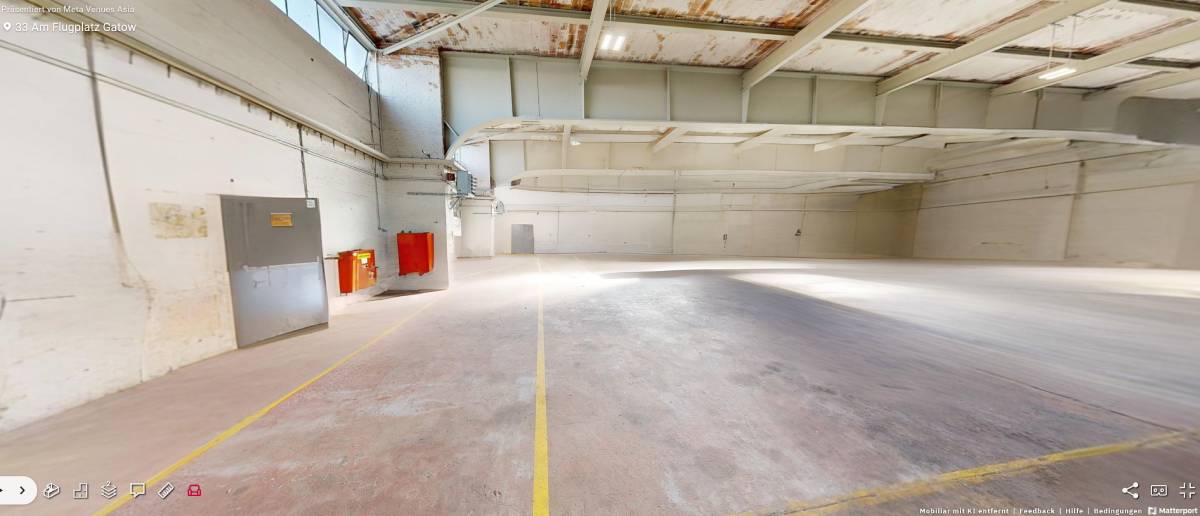

Our latest AI-powered tool automatically detects and removes movable objects like furniture, decorations, or inventory from your scan data – leaving a clean architectural base for precise planning.
Why It Matters
-
Uncluttered point clouds
The AI filters out non-structural elements from the E57 or Matterport model, improving geometry extraction for CAD and reducing cleanup time. -
Better results for BIM workflows
By eliminating visual noise, architects and engineers get a clearer basis for modeling walls, floors, and openings – ideal for renovation or technical planning. -
Save hours of manual work
No need to edit point clouds manually – the AI performs segmentation and classification in minutes, accelerating project timelines. -
More accuracy for material and space analysis
With only architectural geometry remaining, calculations for areas, volumes, and material estimates become far more reliable.
From raw scan to clean BIM-ready data – our E57 conversion and AI cleanup service streamlines your digital construction pipeline.
